Overview

The TP30 range delivers powerful, high-volume petrol-powered water pumping for farms, lifestyle blocks and outdoor applications where mains electricity isn't available.

Featuring large 3" inlet and outlet connections, these self-priming pumps are designed for moving substantial volumes of water, including general water transfer, tank filling, suitable irrigation and dewatering applications.

Choose between the standard 7HP petrol-engine trash pump or the genuine Honda GX200-powered model.

Both feature heavy-duty protective frames and are designed for reliable operation in demanding outdoor environments.

Performance

TP30 – Standard 7HP

• Pump type: Self-priming trash pump
• Maximum flow: 1,017 litres per minute (61,000 L/hour)
• Maximum head: 25 metres
• Maximum suction lift: 7 metres
• Inlet/outlet: 3" (80mm)

TP30-HGX – Honda GX200

• Pump type: Self-priming water transfer pump
• Maximum flow: 1,000 litres per minute (60,000 L/hour)
• Maximum head: 25 metres
• Maximum suction lift: 7 metres
• Inlet/outlet: 3" (80mm)
• Liquid: Clean water, 2–35°C
• Maximum ambient temperature: 40°C

Maximum flow and maximum head are separate operating points. Actual performance depends on pumping height, suction conditions, hose diameter and pipework losses.

Specifications

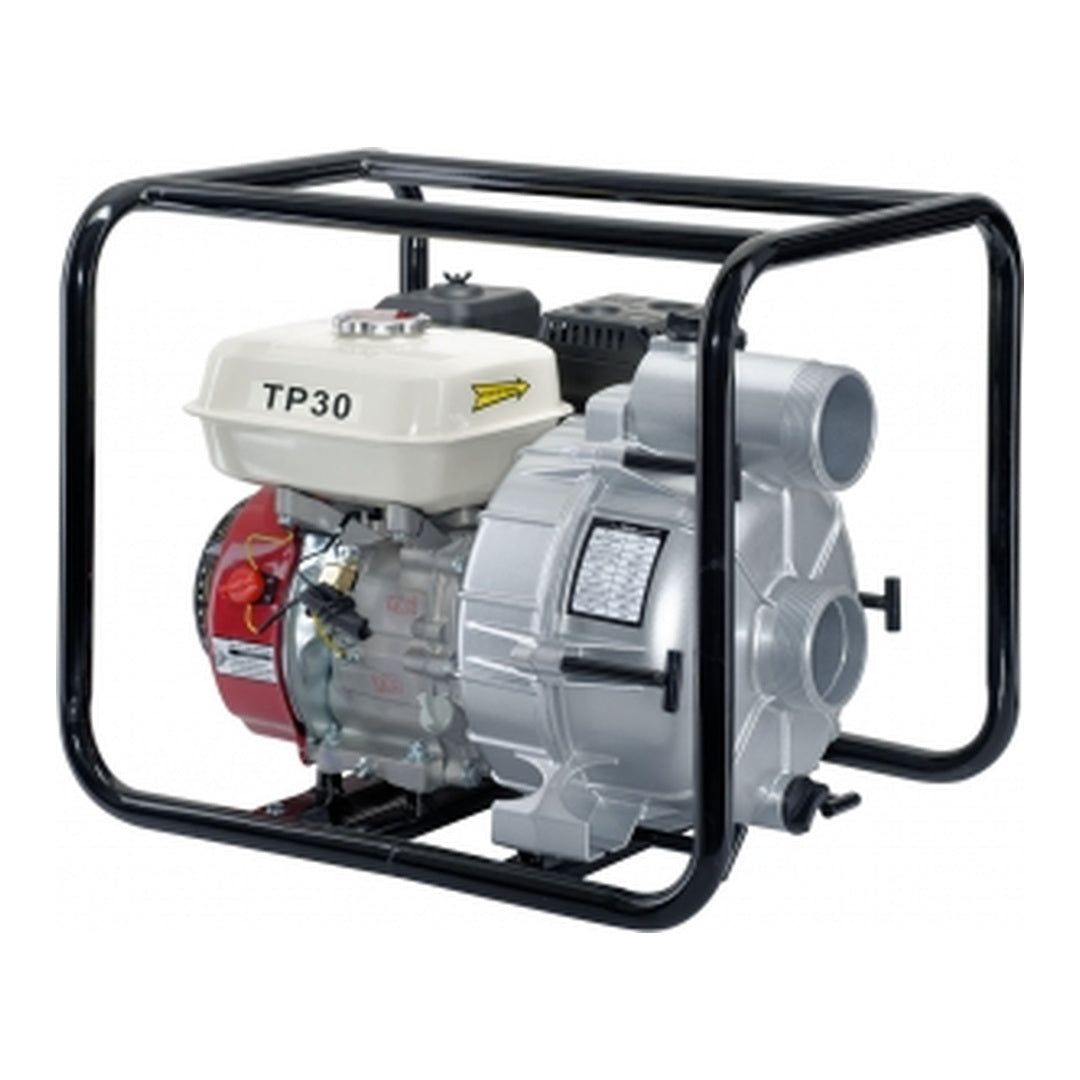

TP30 – Standard 7HP

• Engine: 170F four-stroke OHV petrol
• Engine displacement: 212cc
• Engine power: 7HP
• Starting system: Recoil
• Fuel tank capacity: 6 litres
• Engine oil capacity: 600ml
• Stated continuous running time: Up to 5 hours
• Length: 560mm
• Width: 480mm
• Height: 460mm
• Weight: 37kg

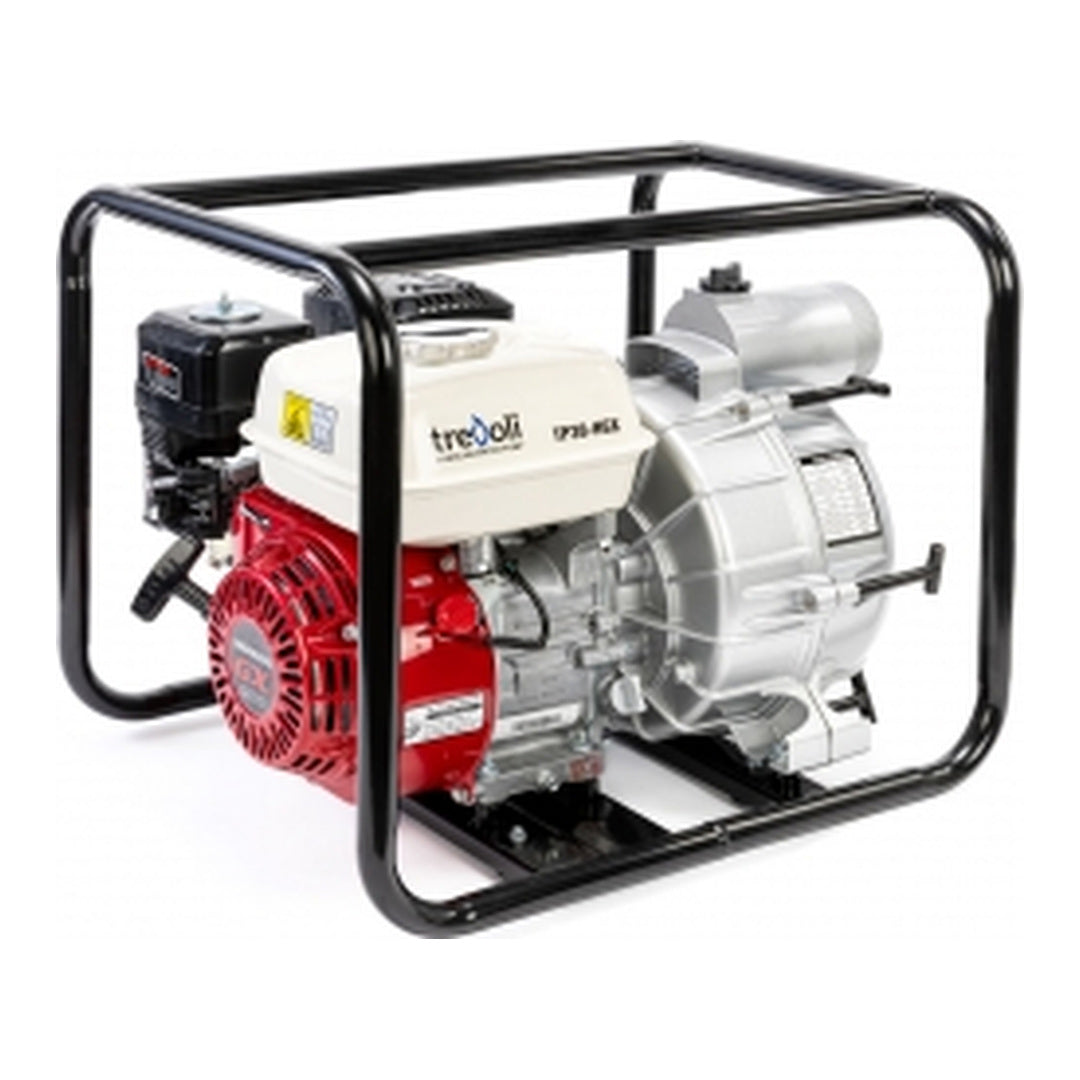

TP30-HGX – Honda GX200

• Engine: Genuine Honda GX200
• Engine type: Single-cylinder, four-stroke, air-cooled petrol
• Engine power: 4.1kW (5.5HP)
• Starting system: Recoil
• Ignition: TCL
• Air cleaner: Semi-dry
• Fuel tank capacity: 3.1 litres
• Package dimensions: 590 × 440 × 545mm
• Gross weight: 37.5kg

Construction & Features

Both models

• Self-priming design
• Heavy-duty carry frame
• Rubber mounting feet
• Carbon/ceramic mechanical seal
• Nitrile seals and gaskets
• Recoil starting system

TP30 Standard

• Trash pump configuration
• Cast-iron cylinder liner
• Ball-bearing-supported crankshaft
• Dual-element air cleaner
• Mechanical decompressor
• Industrial governor system
• Electronic ignition coil
• Automatic low-oil engine protection

TP30-HGX Honda

• Genuine Honda GX200 engine
• Cast-iron pump body, diffuser and impeller
• Carbon/ceramic/nitrile mechanical seal
• Nitrile O-rings and gaskets

Included Equipment

TP30 Standard

• Hose connections and inlet strainer
• 1 litre of engine oil
• Spare spark plug
• Spare air filter
• Spark plug spanner
• Screwdriver

TP30-HGX Honda

• Hose fittings and suction strainer

FAQs

What's the difference between the standard and Honda versions?

The standard TP30 features a 7HP petrol engine and a maximum flow of approximately 1,017 litres per minute.

The Honda version uses a genuine Honda GX200 engine and delivers up to 1,000 litres per minute.

Both have a maximum pumping head of 25 metres and 3" connections. The standard model is described as a trash pump, while the Honda version is specified for clean-water transfer.

Can these pumps be used for irrigation?

Yes, for suitable irrigation applications where the required flow and pressure fall within the pump's operating performance.

Can they pump dirty water?

The standard TP30 is described as a trash pump, but allowable solids size and concentration must be confirmed before using it with debris-laden water.

The Honda TP30-HGX is specified for clean water.

Do these pumps need priming?

Yes. Although self-priming, the pump casing must be filled with water before starting.

What warranty is included?

Both TP30 models are supplied with a 12-month manufacturer's warranty, subject to warranty terms and applicable consumer guarantees.

Need Help Choosing?

Not sure whether you need a high-volume transfer pump or a pump designed for water containing debris? Contact us for straightforward advice.
