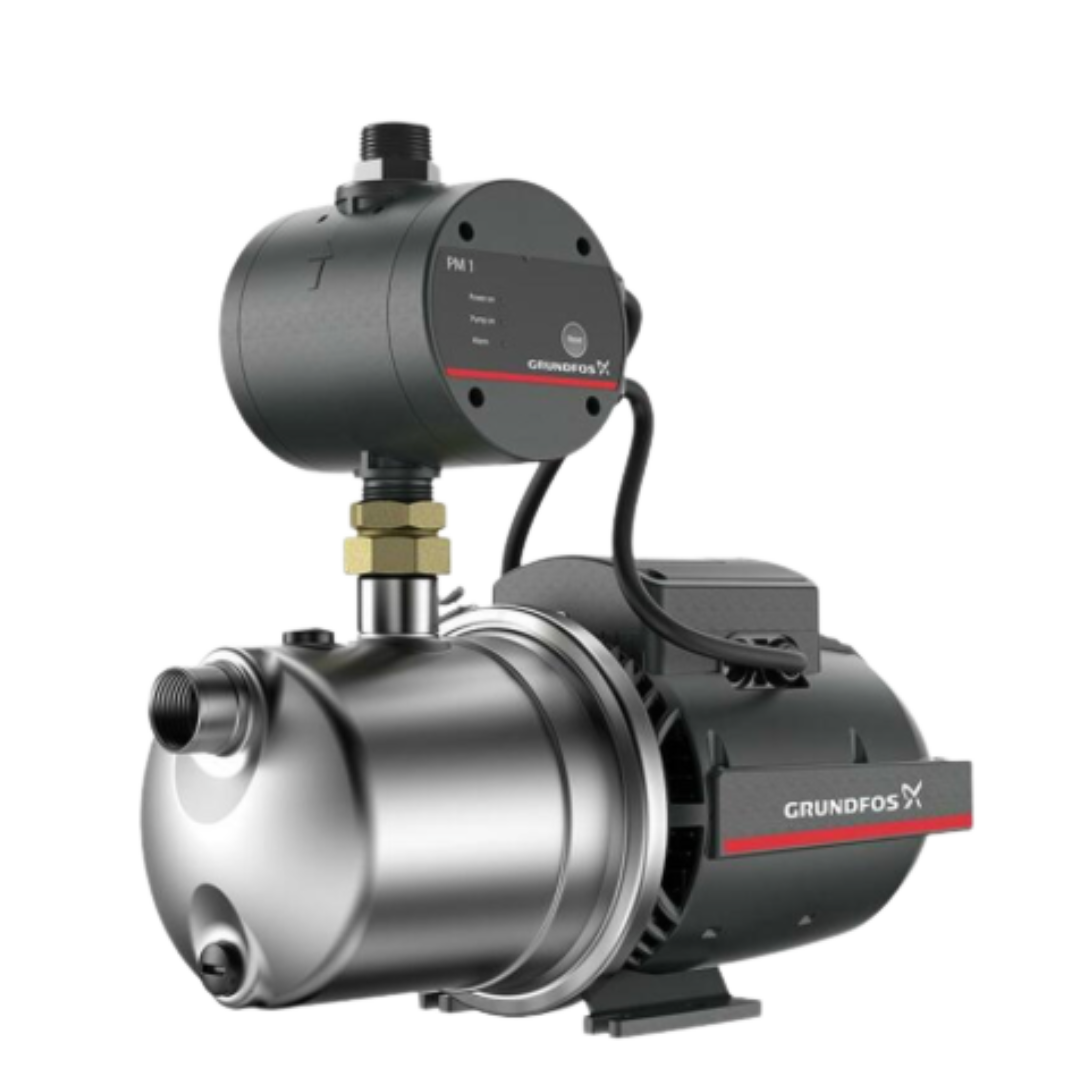

Grundfos JP Series Household Pumps - Jet Pump & Controller
$999.00 NZD
GST included in the price
Couldn't load pickup availability
The Grundfos JP is a compact booster pump designed for domestic and garden use. The booster unit consists of a Grundfos JP self-priming, composite, single-stage jet-pump, with PM1 pressure manager. The pressure manager allows the pump to start and stop automatically according to demand and protects the pump from dry run.
Technical Features
- Self-priming Jet pump
- PM1 (1.5 bar) automatic controller hard wired to the pump
- Automatic start/stop of the pump: > start pressure of 1.5 bar
- Robust design, lightweight and corrosion resistance
- Dry running protection
- Anti-cycling protection
- Non-return valve integrated
- Liquid Temperature 0 °C to 35 °C
- Ambient Temperature Max 40 °C
- Cable 1.5 m with plug
- Enclosure class IP44
- Stainless steel shaft
- Suction-lift up to 7 meters
- 240V 50Hz
-
Sound pressure level:
* JP Rain3: 85 dB
* JP Rain4: 88 db
| Model | Inlet | Outlet | P1 [W] | I [A] | Start Type |
| JP 3-42 PM1 | 1" F | 1" M | 720 | 3.1 | PM1 1-1.5 Bar |

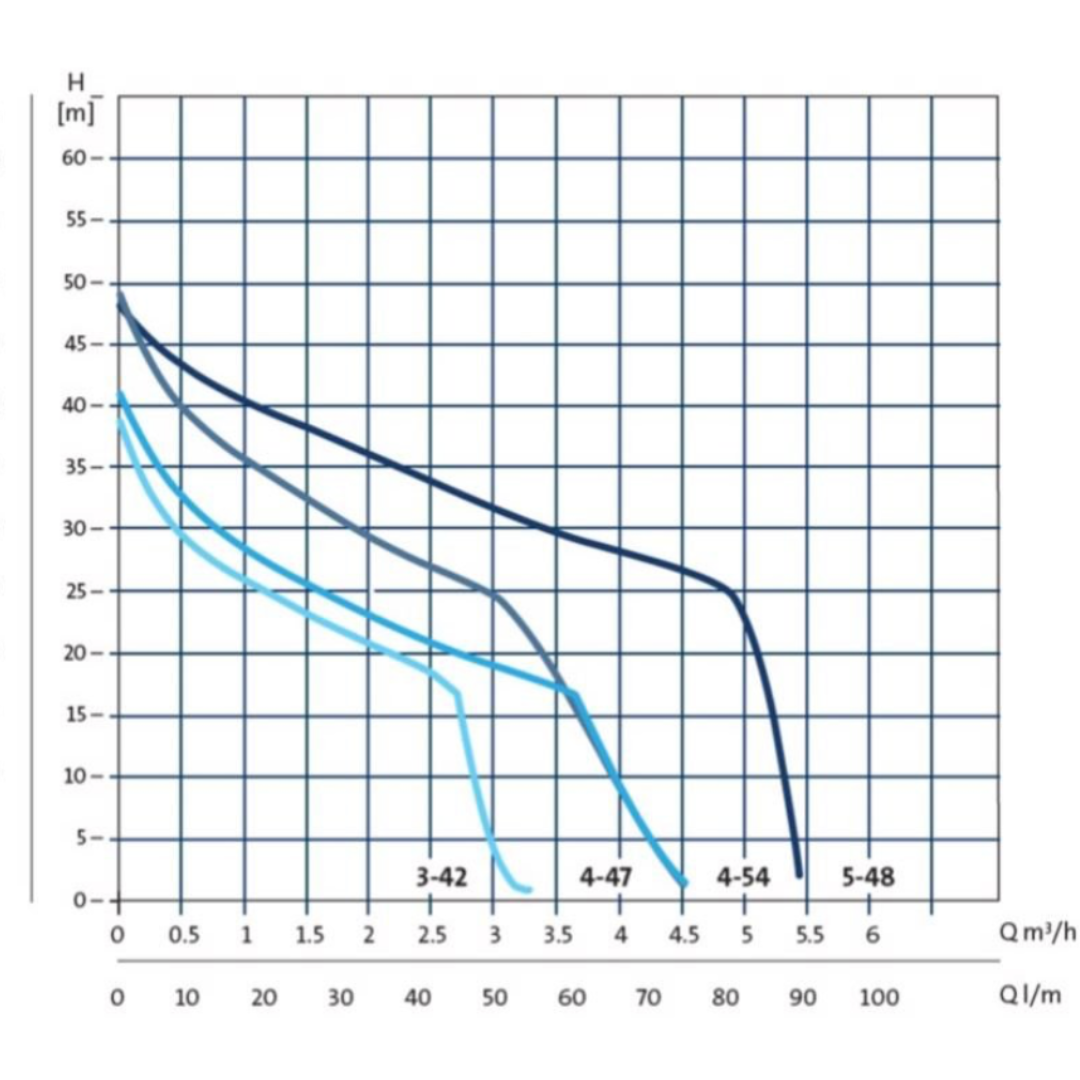

Performance
| Model | kW | HP | Pumping Height | Flow Rate | Inlet/Outlet |
| JP 3-42 | 0.44 | 0.6 | 41m Head | 60 Lpm | 25mm 1" |
2 Year Back to Base Warranty
