Overview

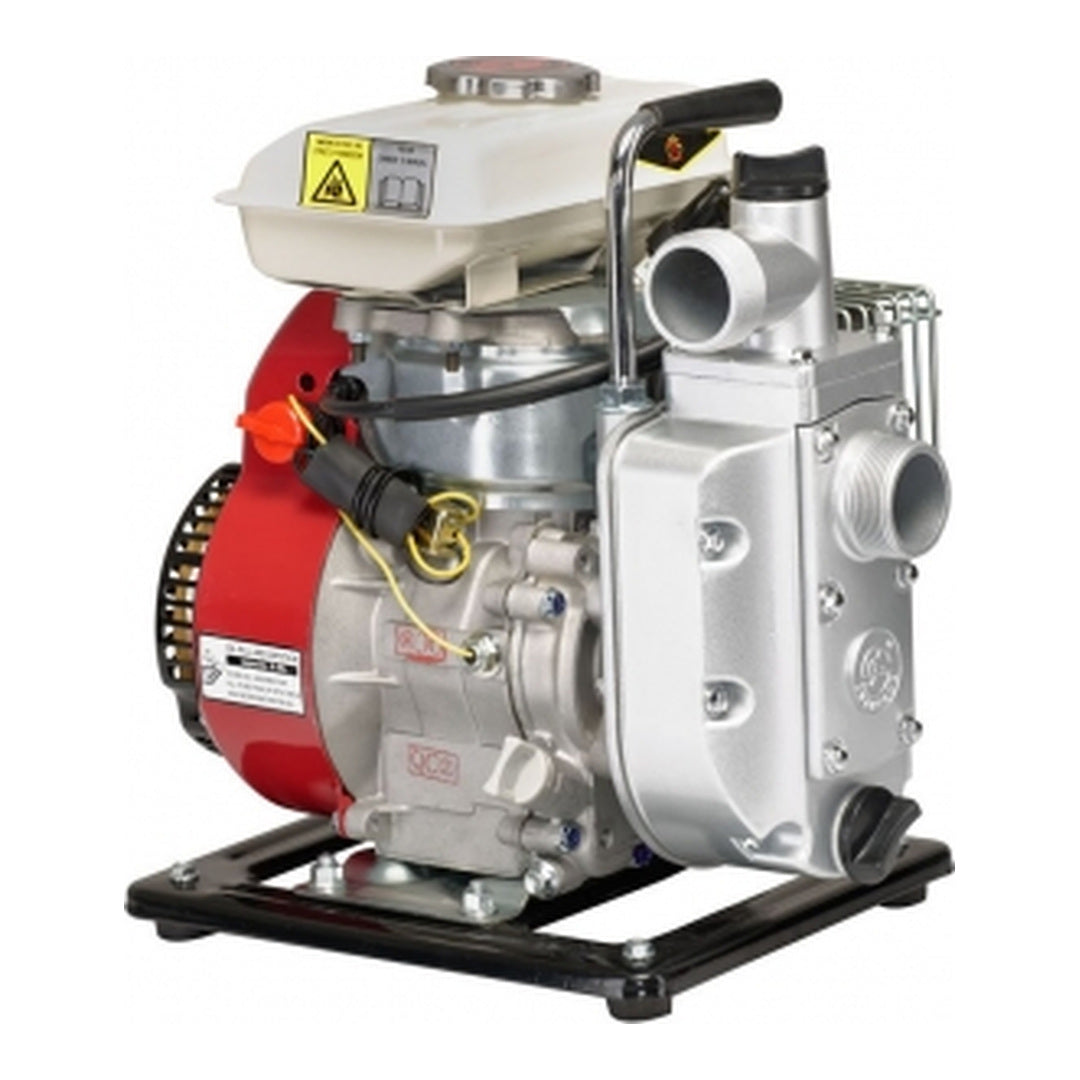

The WP10 is a compact, portable petrol-powered water pump designed for reliable water transfer wherever mains electricity isn't available.

Ideal for lifestyle blocks, farms, irrigation, tank filling and general outdoor water transfer, the WP10 combines a 2.5HP four-stroke petrol engine with a self-priming pump in a portable, heavy-duty frame.

Its overhead-valve engine is built for economical operation and features an automatic low-oil shutdown system to help protect the engine against damage.

At just 12kg, the WP10 is a practical option for smaller water transfer jobs where portability matters.

Performance

• Maximum flow rate: 200 litres per minute (12,000 L/hour)
• Maximum pumping head: 16 metres
• Maximum suction lift: 6 metres
• Inlet and outlet: 1" (25mm)
• Self-priming pump design

Maximum flow and maximum head are separate operating points. Actual performance depends on suction conditions, pumping height, hose diameter and pipework losses.

Engine Specifications

• Engine model: 152F
• Engine type: Single-cylinder, four-stroke OHV petrol
• Engine displacement: 97cc
• Engine power: 2.5HP
• Starting system: Recoil start
• Fuel tank capacity: 1 litre
• Engine oil capacity: 400ml
• Stated continuous running time: Up to 5 hours
• Low-oil automatic shutdown

Construction & Features

• Cast-iron cylinder liner
• Ball-bearing-supported crankshaft
• Dual-element air cleaner
• Mechanical decompressor
• Industrial governor system
• Electronic ignition coil
• Heavy-duty roll frame with rubber feet
• Carbon/ceramic mechanical seal
• Nitrile O-rings

Dimensions & Weight

• Length: 380mm
• Width: 300mm
• Height: 395mm
• Weight: 12kg

Included Starter Pack

Every WP10 comes with:

• 1 litre of engine oil
• Spare spark plug
• Spare air filter
• Spark plug spanner
• Screwdriver
• Hose connections
• Inlet strainer

FAQs

Does the WP10 need electricity?

No. The WP10 is powered by its own four-stroke petrol engine, making it suitable for locations without mains electricity.

Can it draw water from a tank, stream or pond?

Yes, provided the water source is suitable for a clean-water pump and the installation is correctly set up. Use the supplied inlet strainer and appropriate suction hose.

Is the pump self-priming?

Yes. The WP10 has a self-priming design, although the pump casing must be filled with water before initial operation.

Can I use it for irrigation?

Yes, for suitable low-pressure irrigation and water transfer applications. Check the required operating pressure and flow before selecting a pump.

Does it have low-oil protection?

Yes. The engine includes an automatic low-oil cut-out to help prevent engine damage.

Can it pump dirty or muddy water?

The WP10 is intended for clean-water transfer. For water containing significant sediment or solids, a pump specifically designed for those conditions is more appropriate.

What warranty is included?

The WP10 is supplied with a 1-year warranty, subject to the manufacturer's conditions and applicable consumer guarantees.

Need Help Choosing?

Not sure whether the WP10 is right for your application? Contact us and we'll help you select the right pump.
