Overview

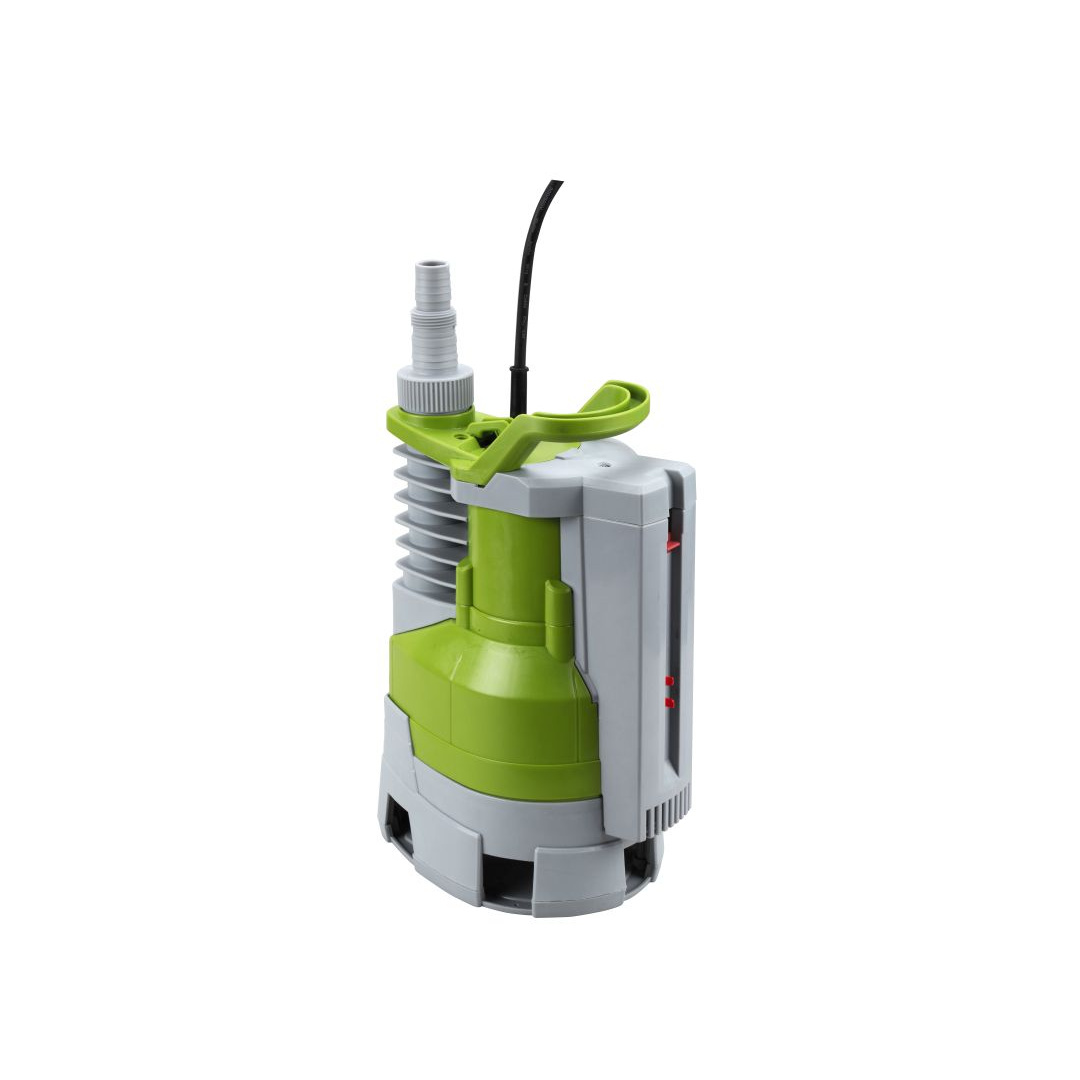

The HiFlo JH550B is a compact, light-to-medium-duty submersible drainage pump designed for removing water from household sumps, swimming pools and flooded areas.

Its internal float switch makes it particularly useful in smaller sumps where a conventional external float switch may not have enough room to operate freely.

With automatic and manual operating modes, an adjustable automatic start level and the ability to handle particles up to 35mm, it's a practical, affordable choice for everyday drainage tasks.

Key features

• Internal float switch for compact sump installations
• Automatic and manual operating modes
• Adjustable automatic start level
• Handles particles up to 35mm
• Pumps down to approximately 40mm in manual mode
• Lightweight, portable design
• Non-return flap valve included
• 10m power cable with three-pin plug

Important: Not suitable for construction sites, ponds, fountains or bio-treatment systems.

Performance

The JH550B is designed for light-to-medium-duty drainage rather than pressurised water supply.

Automatic operation

• Starts at approximately 150mm water depth, adjustable up to 220mm
• Stops at approximately 110mm

Manual operation

• Runs continuously while switched on and connected to power
• Can pump down to approximately 40mm
• Must be monitored to prevent dry running

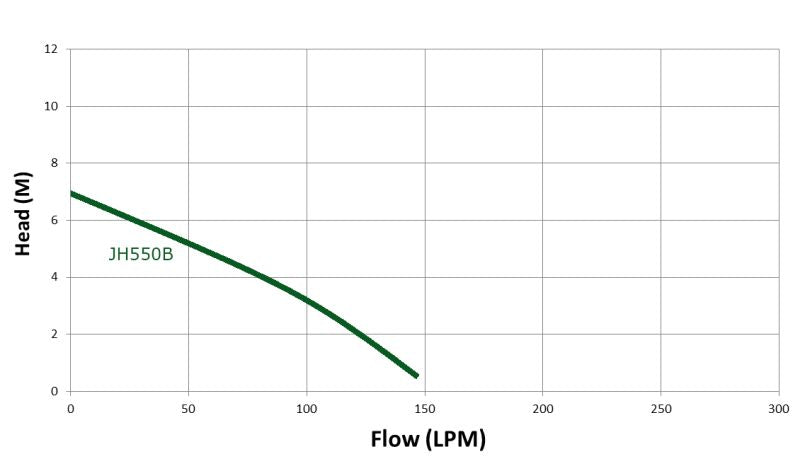

Pump performance

• Maximum head: approximately 7m
• Maximum flow: approximately 150 L/min
• Maximum immersion depth: 7m
• Maximum particle size: 35mm

Maximum head and maximum flow occur at different operating points. Actual flow depends on the pumping height, discharge pipework and friction losses.

Specifications

• Model: JH550B
• Motor power: 0.5kW / 0.7HP
• Power supply: 220–240V, single-phase
• Outlet: 25mm / 32mm
• Maximum particle size: 35mm
• Float switch: Internal
• Operating modes: Automatic / Manual
• Automatic start level: 150–220mm adjustable
• Automatic stop level: Approximately 110mm
• Minimum pump-down level: Approximately 40mm (manual mode)
• Maximum immersion depth: 7m
• Power cable: 10m with three-pin plug

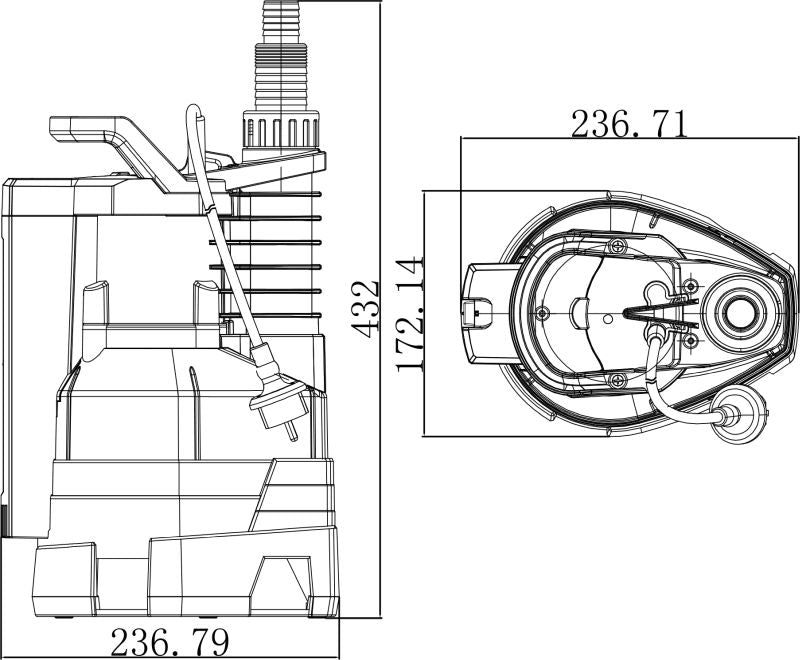

Construction

The JH550B features a lightweight, portable design with an integrated internal float-switch mechanism.

Unlike conventional tethered float switches, the internal arrangement allows automatic operation in more confined sump installations, provided the pump fits and the required operating water levels can be maintained.

Supplied with a non-return flap valve, 10m electrical cable and three-pin plug.

Warranty: 1 year against manufacturing defects, subject to our general warranty terms.

FAQs

Can this pump operate automatically?

Yes. In automatic mode, the internal float switch starts the pump when water reaches the selected start level and stops it at approximately 110mm.

Will it work in a small sump?

Yes. Its internal float switch makes it suitable for smaller sumps where an external float may not operate freely. Check the pump dimensions and operating water levels before installation.

How low can it pump the water?

Approximately 40mm in manual mode. In automatic mode, it switches off at approximately 110mm.

Can it pump dirty water?

Yes, for suitable light-to-medium-duty drainage applications, including water containing particles up to 35mm. It is not intended for construction-site drainage or bio-treatment systems.

Can I leave it running continuously in manual mode?

Manual mode keeps the pump operating while power is supplied. Monitor the water level and switch it off before it runs dry.

Are spare parts available?

Contact us for spare parts availability and pricing.
