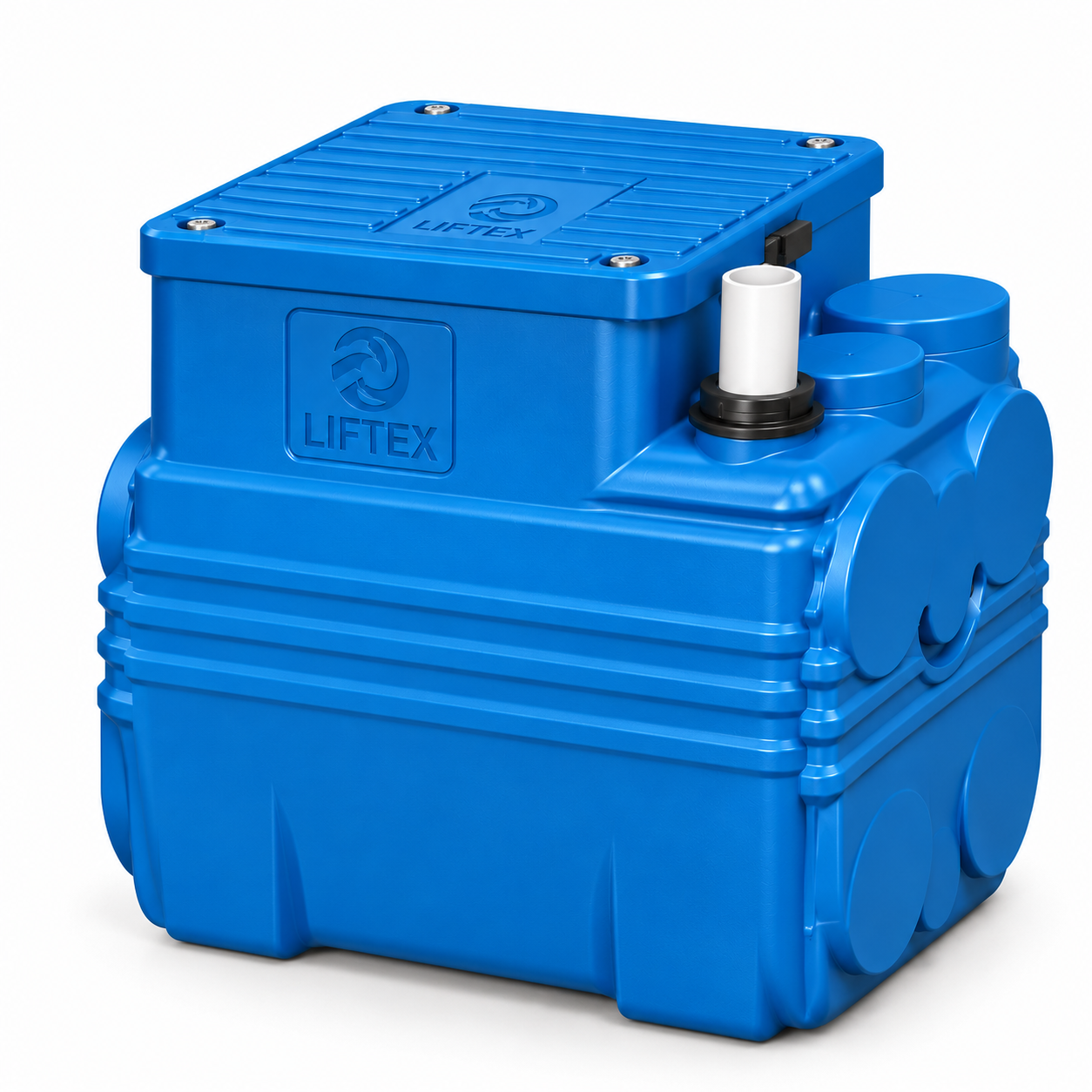

Liftex 90L Drainage Chamber
Couldn't load pickup availability
Overview
The Liftex 90L drainage chamber is designed to collect rainwater and wastewater from fixtures such as washing machines, sinks and toilets where the drainage system is positioned below the main sewer connection.
Suitable for residential and civil applications, including garages and basements, its 90 litre capacity provides additional collection volume while maintaining a compact footprint.
CHAMBER ONLY — PUMP NOT INCLUDED. A suitable pump, controls and installation fittings must be selected separately.
See our Compatible Pumps & Accessories tab for guidance on choosing the right equipment.
Specifications
- Capacity: 90 litres
- Dimensions: 480 × 370 × 610mm
- Pump positions: 1
- Maximum operating temperature: 40°C
- Short-term temperature tolerance: 90°C
- Delivery connection: 1½" (40mm)
- Cover: Walk-over
- Warranty: 2 years
Construction & Features
- Walk-over cover
- O-ring seal between chamber and cover
- Simplified sealed inlet, outlet and air vent connections
- Integrated lifting handles
- Airtight cable gland for easier pump removal and maintenance
- Side fins for additional grip when installed in-floor
Compatible Pumps & Accessories
CHAMBER ONLY — PUMP NOT INCLUDED
The Liftex 90L chamber accommodates one submersible pump. Selecting the right pump depends on the type of wastewater, required flow, pumping height and installation requirements.
Compatible Pump Options
A cutter pump option for applications involving toilet wastewater and other suitable effluent. Its cutting mechanism helps process solids before discharge.
A vortex pump option for suitable wastewater applications where solids handling is required without a cutting mechanism.
Both pump options require confirmation of the correct installation fittings and operating arrangement.
Controllers & Alarms
Depending on the selected pump and installation, additional equipment may include:
- Pump controller or suitable automatic level control
- High-level water alarm
- Appropriate electrical protection and connections
Installation Accessories
Additional fittings may include discharge pipe adapters, non-return valves, isolation valves and suitable inlet, outlet and vent connections.
Professional installation is recommended. Confirm your proposed pump and fittings with your installer before ordering.
Need help choosing? Contact us and we'll help you identify the appropriate components for your installation.
FAQs
Does the 90L chamber include a pump?
No. This is the chamber only. Pumps, controls and any necessary accessories are sold separately.
Can it be used for toilet wastewater?
The chamber is designed for wastewater applications including toilets, provided a suitable pump and associated equipment are selected.
Can it be installed below floor level?
Yes. The side fins provide additional grip for in-floor installation. Installation must follow the manufacturer's instructions and applicable requirements.
Can I purchase the equipment and arrange professional installation?
Yes. You can purchase the chamber and associated equipment directly, then arrange professional installation. We recommend confirming suitability with your installer before ordering.
Need help choosing? Contact us for straightforward advice on selecting a suitable chamber, pump and accessories.
