- Product Use
Get clean drinking water, from town supply, rainwater, bore or any source! Eliminate heavy chlorine dosing on town supply
These systems are cost effective vs buying water with no dosing or chemicals required. An environmentally safe, and healthier option.

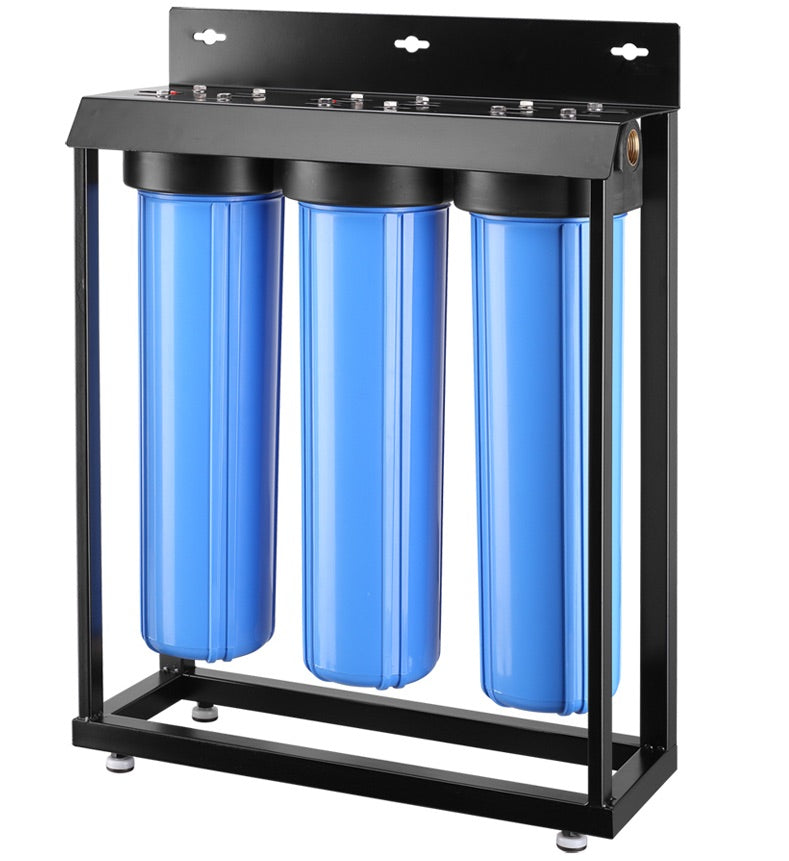

This is a Triple 20" Jumbo Filter System in a robust frame and includes the filters. Designed for whole of house, for a small house using a maximum of 5 taps at once - about 50 litres per minute including appliances such as washing machine, dishwasher etc.
We design our systems to sit on the floor or ground because wall hung systems are difficult to mount safely, requiring bracing to support up to 25kg+! Floor mounted systems eliminate the problem of this bracing.
You can add UV for water sterilisation as filtration cleans the water, but does not make it safe for drinking water purposes.
Photos show how UV can be mounted (does not incl UV).
For a medium house, 3 people, 3 taps ever going at once (including appliances): Add a 30W UV System.
For a large house, 4+ people, 4+ taps ever going at once (including appliances): Add a 55W UV System.
AISI304 Stainless Steel Frame, black powder coated finish
3x 20" Jumbo Housings: Made from high quality BPA free, UV Safe plastic. Won't release toxic poisons!
Filter housings joined & assembled in frame: plug & play

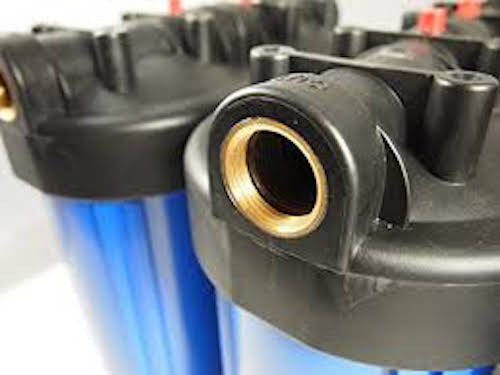

Ports: 1" Brass threaded Strong, Won't split like plastic ports
Rubber O-Ring in lip seal: water tight
Cap with Pressure relief valve: Easy housing removal
Max Water Temperature: 37C
Max Water Pressure 100PSI on constant flow - not pulsating water
Dimensions: 550mm W x 210mm D, 800mm H at back, 710mm H at front
This system includes the following filters:
Stage 1: PP Spun 5 Micron: Removes particles, dust, dirt, sand
Stage 2: PP Spun 1 Micron: Removes particles, dust, dirt, sand
Stage 3: Carbon Block: Removes chlorine (town supply), pesticides, sprays, organics from decaying matter. Improves taste, removes odours
