Pack 3 Combination Offer Multistage Pump with Electronic Controller, Whole of House Filter & UV System - Large House with Mains Pressure



This amazing package deal is suited for larger homes, containing two bathrooms and running an average of 8 taps at once (80 lpm).

The package includes multistage pump with electronic controller, whole house triple filter system and filters, and 110W UV System.

Normally $1767 if purchased separately!

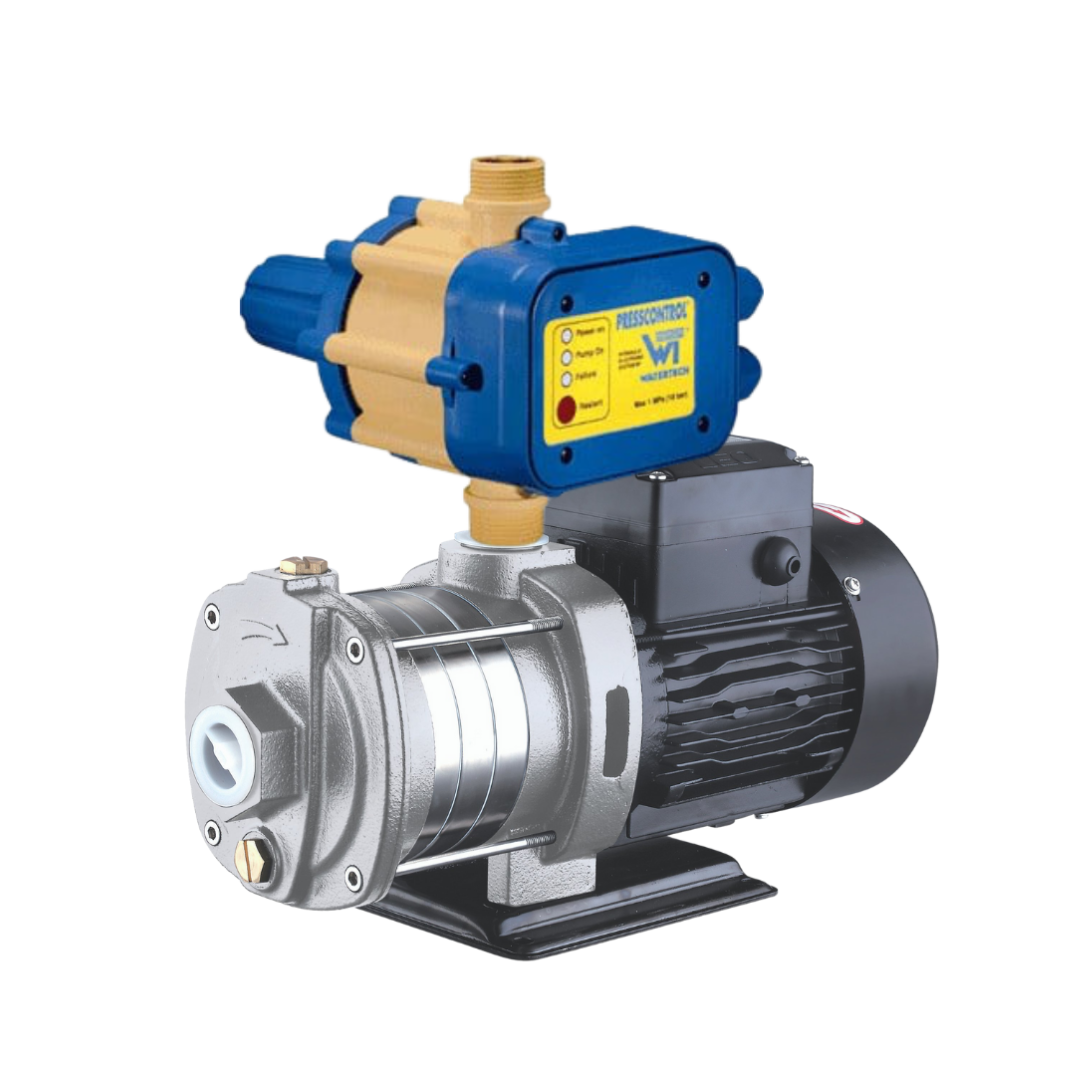

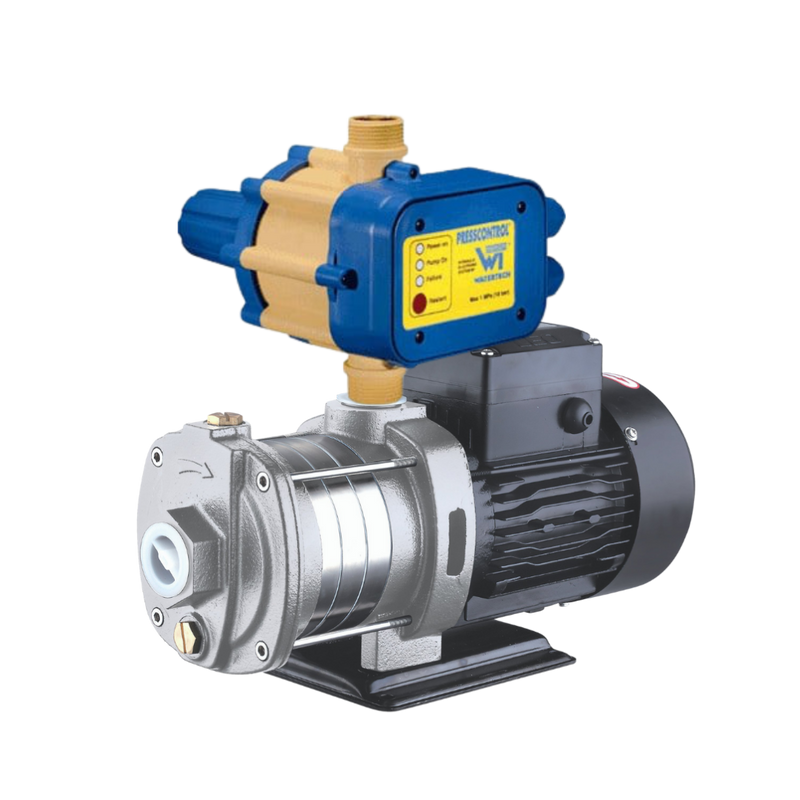

Pump: ECHm4-60SE

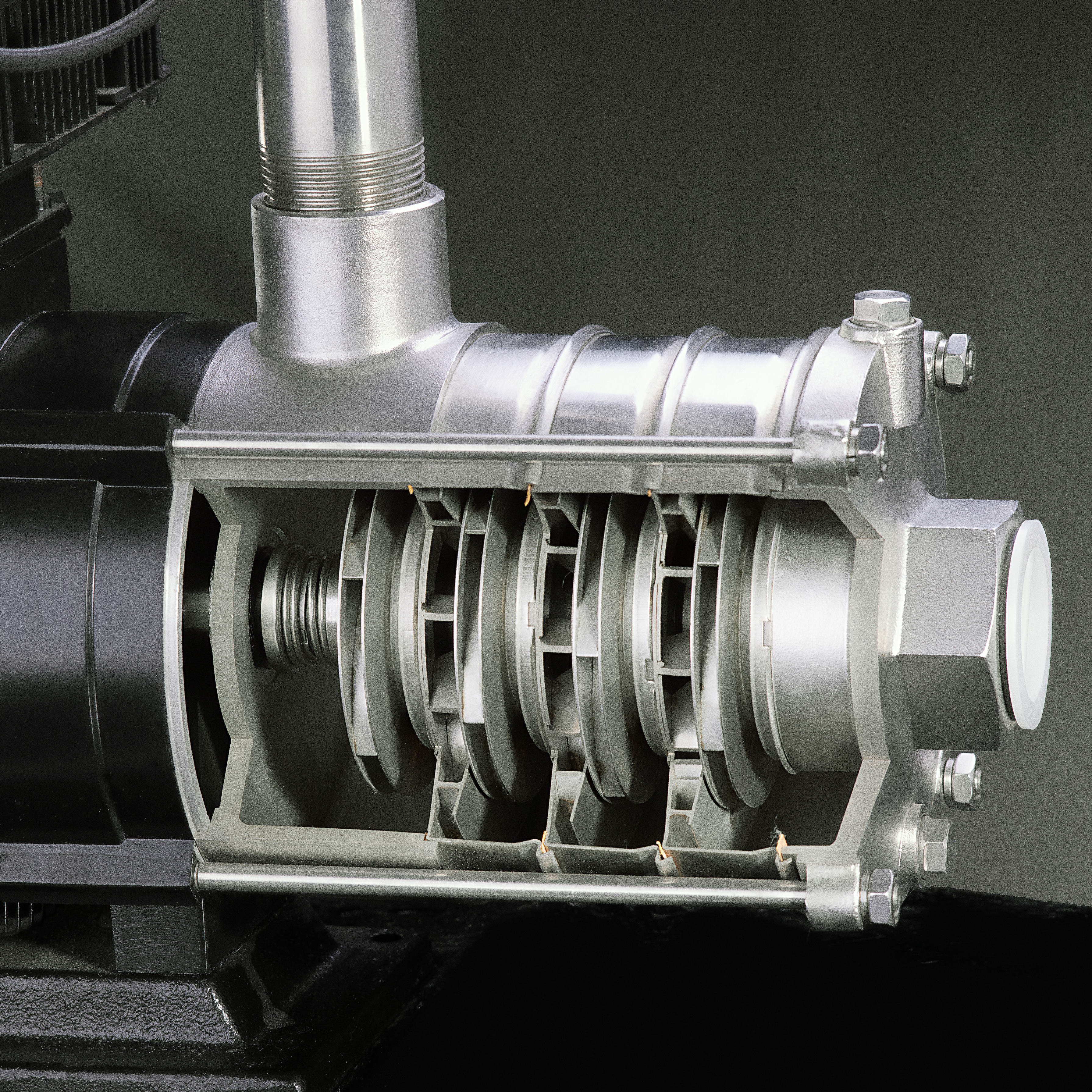

Horizontal Multistage Pump Factory Fitted with Electronic Automatic Controller for auto on/off function

Multi impeller pump achieves higher pressure & flow efficiency for smaller motor size

This pump supports 8+ taps 10lpm each, running at once at 64 PSI
Low pressure = approx 40 PSI; Good pressure 50-60PSI. Tapware, seals, appliances may be detrimentally affected by pressure too high so check capability. For this pump they must be rated for high pressure (mains)

1.1kW/1.5HP Max 55m head, 120 l/pm

Single Phase

Working duty 17 l/pm at 55m head - 83 l/pm at 39m head

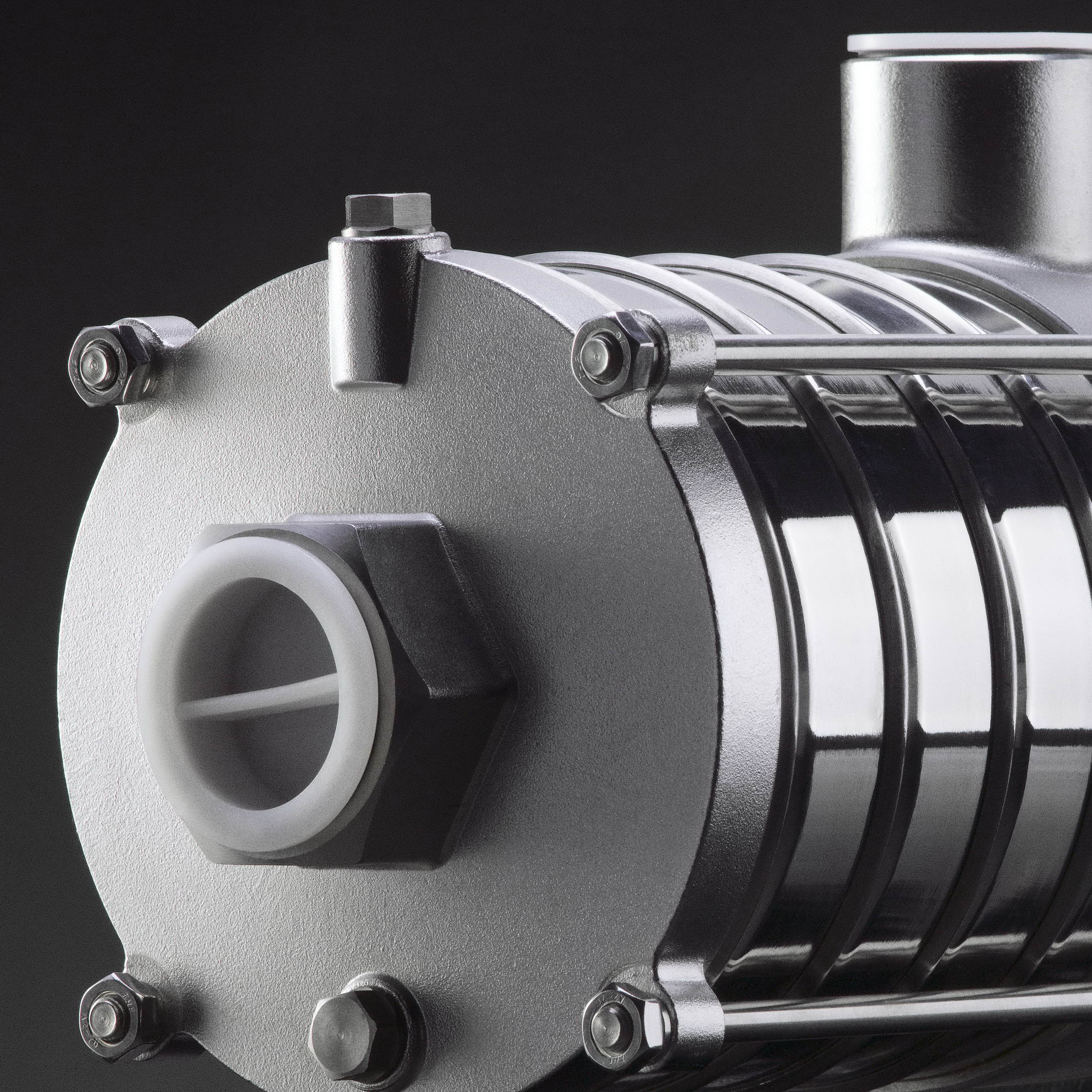

 AISI304 Stainless Steel impeller, diffuser, shaft

1.25" Inlet

1" Outlet

8m Suction Lift

Water Temperature to 85 Deg Celsius

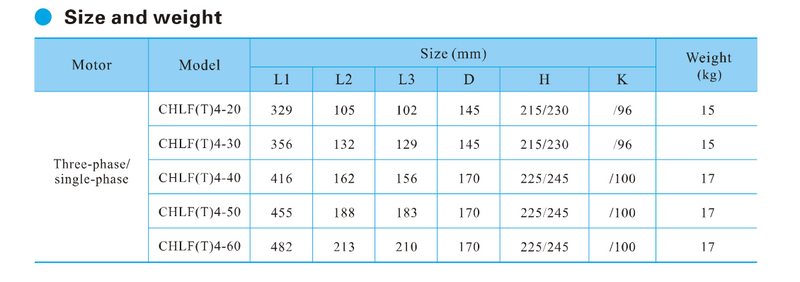

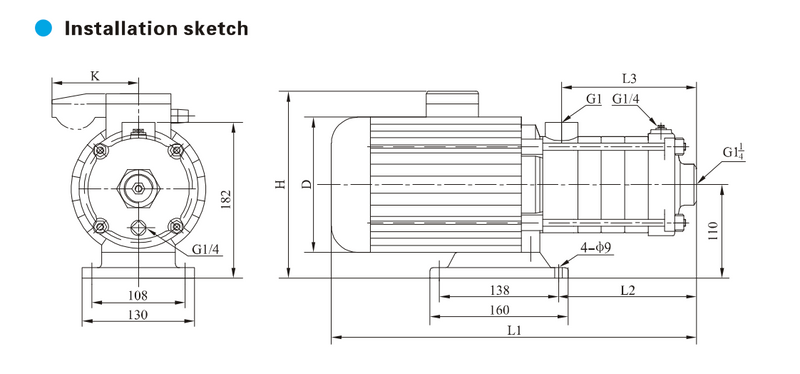

Click here for a data sheet on this product and others in this range

Filter System:

Protect your family with purified drinking water, for town supply, harvested rainwater, bore water or any source!

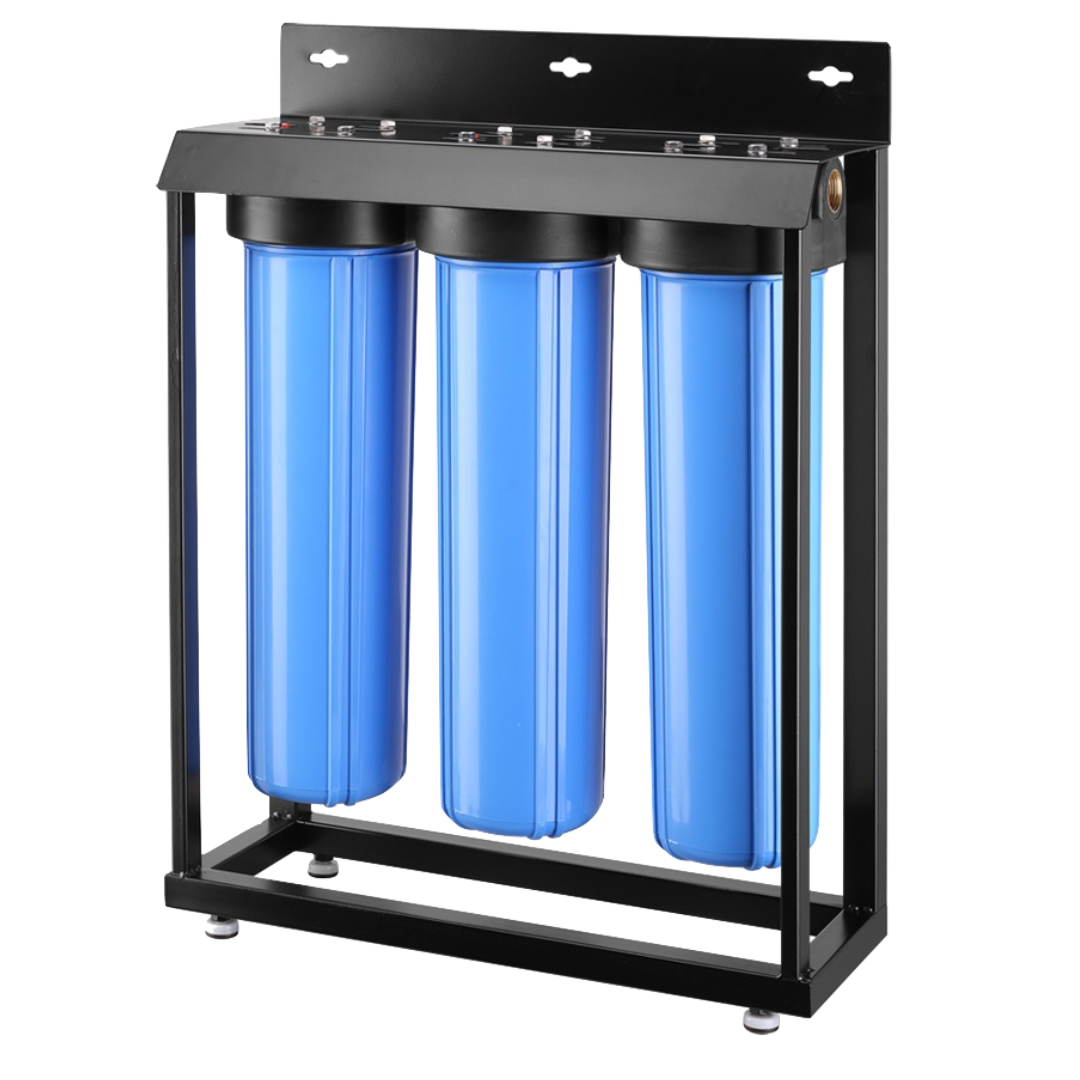

Triple 20" Jumbo Filter System in robust frame - systems that hang on the wall are difficult to mount correctly and safely, the bracing required is not always available. Our floor mounted system eliminates this problem, but can still be wall mounted if you prefer.

Cost effective protection providing clean water with appropriate filters, environmentally safe without introducing chemicals

This system is for whole of house using up to 5 taps at once (including water using appliances - washing machine, dishwasher etc)

Takes a standard 20" jumbo filter, 110mm diameter

Our housings:
Made from high quality BPA free, UV Safe plastic. Won't release toxic poisons!
Takes Jumbo 20" filters - outside diameter 110mm
Supplied assembled in strong steel with powder coating frame, with spanner for tightening housings

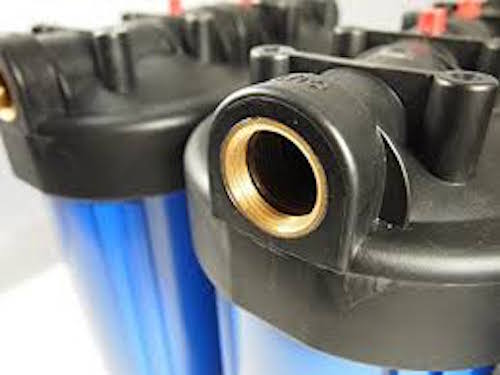

25mm Brass threaded ports for strength
Rubber O-Ring in lip seal for water tightness
Cap with Pressure relief valve for easy housing removal

System includes first set of filters:

Stage 1:  5 Micron PP Spun Sediment filter

Stage 2:  1 Micron PP Spun Sediment filter

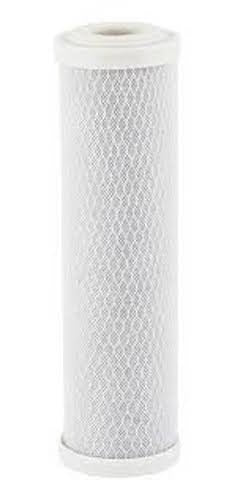

Stage 3:  CTO Carbon Block filter

Recommended max water pressure 100 PSI
Flow Rate Max 50 LPM
Max Water Temperature 37C

For best results install post water pump


Filters available from us to use with this housing:
PP Spun Sediment - 20, 5 or 1 Micron (PP)
Carbon Block Filters (CTO)

2 Year Warranty

Ultraviolet Sterilisation System

Do you have filters and want to add UV to your drinking water to sterilise the water from the nasty bugs that make you sick?



Ultraviolet Sterilisation System

Do you have filters and want to add UV to your drinking water to sterilise the water from the nasty bugs that make you sick?

Effective environmentally friendly disinfection without chemicals

Chambers are 100% Pressure Tested
Ballasts are 100% Electrically Tested

FEATURES:

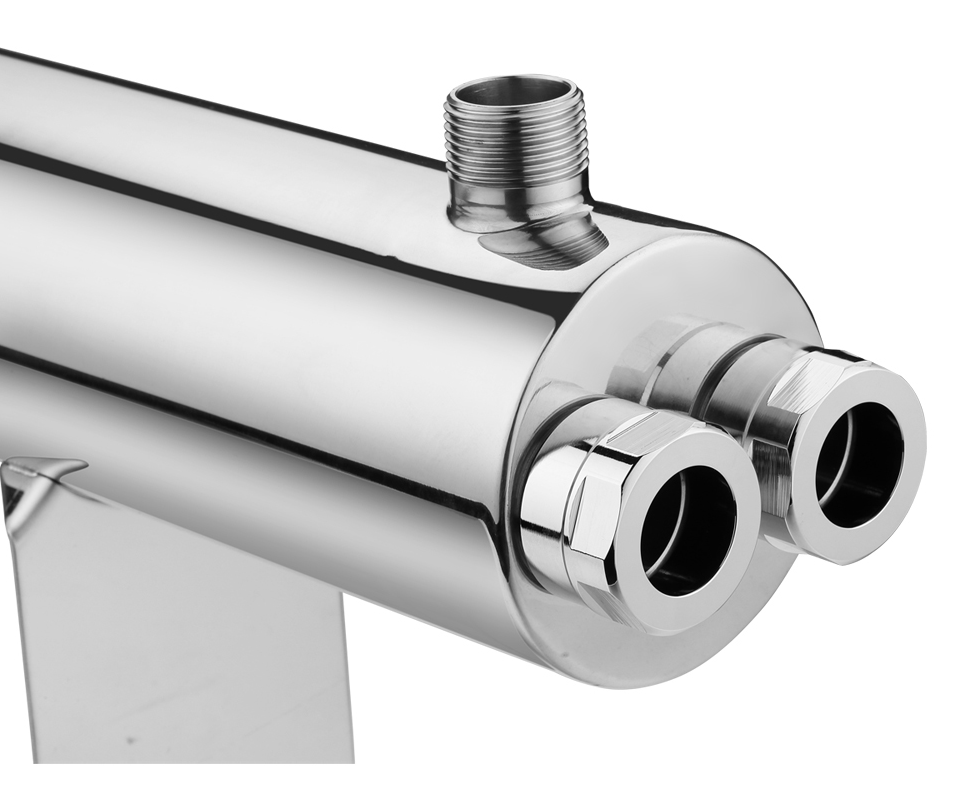

Chamber: AISI304 Stainless Steel
Chamber Length: 965mm
Ports: 3/4" male threaded
Lamp: 4 pin configuration. Lamp life 6-9000 hrs. Change annually
Max Operating Pressure: (145 PSI)
Ambient Temp 2-40C

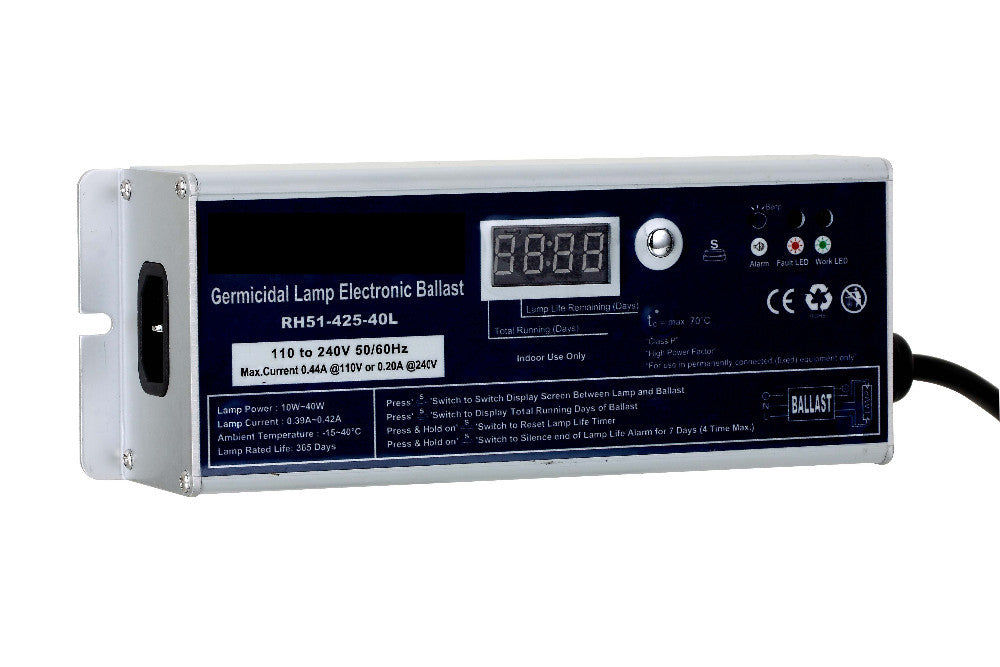

Audible Alarm on Ballast indicates lamp failure
Visual "Power On" LED
2 Yr Warranty on Faulty Parts & Workmanship. Does not include lamp or ballast failure due to power events. We recommend using Belkin Surge Protectors

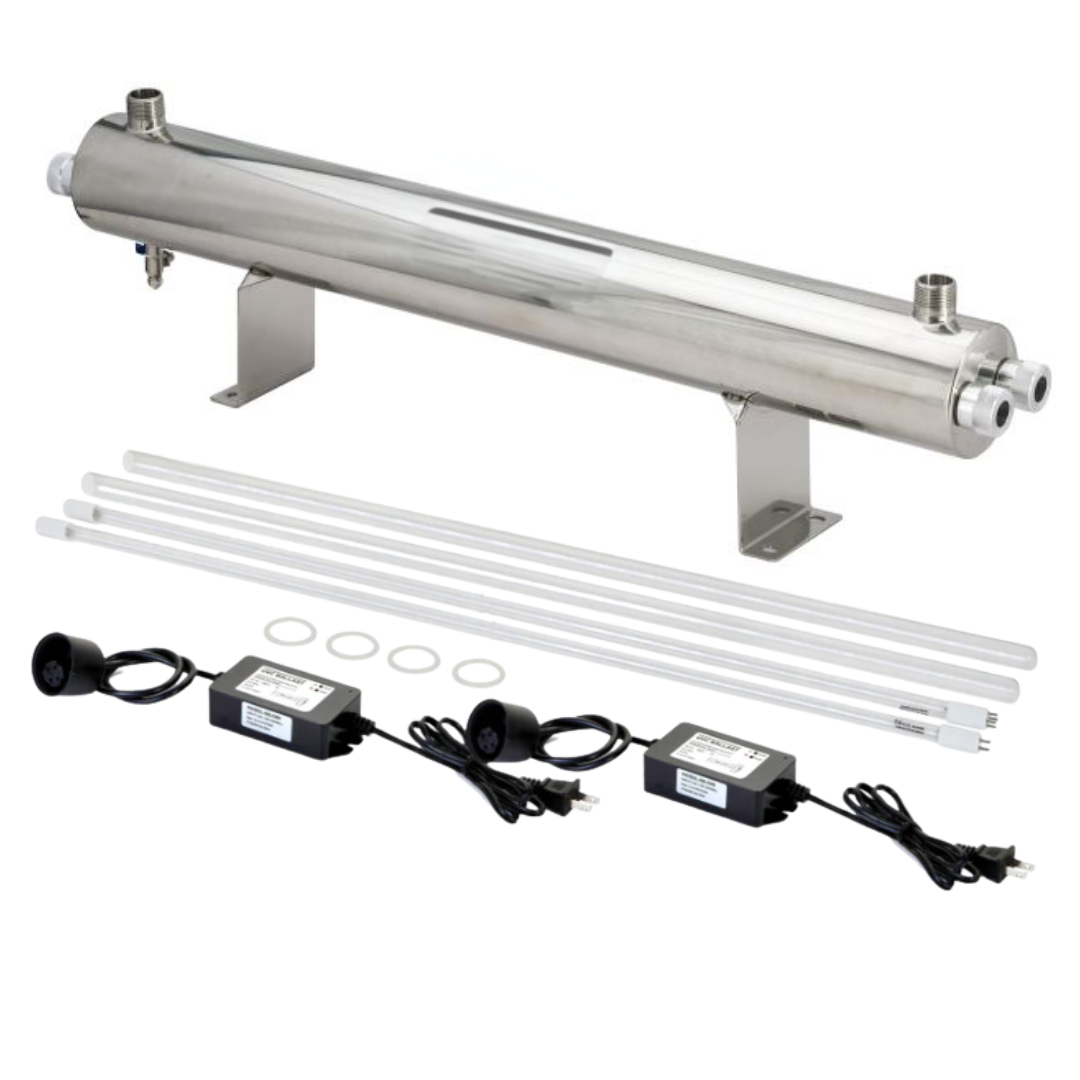

110W System
Lamp: 2 lamps, 55W each
Power Consumption: 72W each lamp
Flow: 90lpm
Replacement: Quartz sleeve $90, Lamp $90
